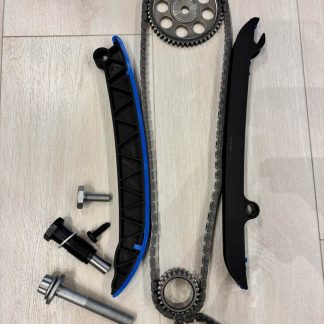

SKF Steuerkettensatz für VW AUDI SKODA SEAT 1.2 TSI 1.2 TFSI 86PS 90PS 105PS CBZA CBZB

SKF Steuerkettensatz für VW 1.2 TSI/1.2 TFSI 86PS 90PS 105PS CBZA CBZB

Großer Kettensatz inkl. dem Antrieb für die Ölpumpe und Ritzel an der Kurbelwelle.

Motorcode: CBZA, CBZB

Für alle 1.2 TSI Benziner!

Fahrzeuge:

AUDI A1 (8X1, 8XK):
1.2 TFSI [05/10 .. 04/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
AUDI A1 Sportback (8XA, 8XF):
1.2 TFSI [01/12 .. 04/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
AUDI A3 (8P1):
1.2 TSI [04/10 .. 08/12; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
AUDI A3 Cabriolet (8P7):
1.2 TFSI [03/10 .. 05/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
AUDI A3 Sportback (8PA):
1.2 TSI [04/10 .. 03/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SEAT ALTEA (5P1):
1.2 TSI [04/10 .. 07/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SEAT ALTEA XL (5P5, 5P8):
1.2 TSI [04/10 .. 07/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SEAT IBIZA IV (6J5, 6P1):
1.2 TSI [09/10 .. 03/12; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
1.2 TSI [08/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
SEAT IBIZA IV SC (6J1, 6P5):
1.2 TSI [09/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
1.2 TSI [08/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
SEAT IBIZA IV ST (6J8, 6P8):
1.2 TSI [09/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [09/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SEAT LEON (1P1):
1.2 TSI [02/10 .. 12/12; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SEAT TOLEDO IV (KG3):
1.2 TSI [07/12 .. 06/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [07/12 .. 06/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA FABIA II (542):
1.2 TSI [03/10 .. 12/14; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
1.2 TSI [03/10 .. 12/14; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
SKODA FABIA II Combi (545):
1.2 TSI [03/10 .. 12/14; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [03/10 .. 12/14; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA OCTAVIA II (1Z3):
1.2 TSI [02/10 .. 06/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA OCTAVIA II Combi (1Z5):
1.2 TSI [02/10 .. 04/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA RAPID (NH3, NK3, NK6):
1.2 LPG [07/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [07/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [07/12 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA RAPID Spaceback (NH1):
1.2 TSI [07/12 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [07/12 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA ROOMSTER (5J7):
1.2 TSI [03/10 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [03/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
SKODA ROOMSTER Praktik (5J):
1.2 TSI [03/10 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
SKODA YETI (5L):
1.2 TSI [09/09 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW BEETLE (5C1, 5C2):
1.2 TSI [07/11 .. 07/19; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW BEETLE Cabriolet (5C7, 5C8):
1.2 TSI [12/11 .. 07/19; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW CADDY III Großraumlimousine (2KB, 2KJ, 2CB, 2CJ):
1.2 TSI [09/10 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [09/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW CADDY III Kasten/Großraumlimousine (2KA, 2KH, 2CA, 2CH):
1.2 TSI [09/10 .. 05/15; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [09/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW GOLF PLUS V (5M1, 521):
1.2 TSI [11/09 .. 12/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
1.2 TSI [05/10 .. 12/13; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
VW GOLF VI (5K1):
1.2 TSI [11/08 .. 11/12; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
1.2 TSI [05/10 .. 11/12; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
VW GOLF VI Cabriolet (517):
1.2 TSI [03/11 .. 05/16; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW GOLF VI Variant (AJ5):
1.2 TSI [07/10 .. 07/13; 63 kW (86 PS); 1197 ccm; Motorcodes: CBZA]
1.2 TSI [07/09 .. 07/13; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW JETTA IV (162, 163, AV3, AV2):
1.2 TSI [10/10 .. 12/17; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW POLO V (6R1, 6C1):
1.2 TSI [05/11 .. 05/14; 66 kW (90 PS); 1197 ccm; Motorcodes: CBZC]
1.2 TSI [11/09 .. 05/22; 77 kW (105 PS); 1197 ccm; Motorcodes: CBZB]
VW TOURAN (1T3):
1.2 TSI [05/10 .. 05/15; 77 kW (105 PS); 1197 ccm; Motorcodes

OE-Nummern:
AUDI: 03F 109 158 G , 03F 109 507 F , 03F 115 225 , 03F 198 158 B
SEAT: 03F 109 158 G , 03F 109 507 F , 03F 115 225 , 03F 198 158 B
SKODA: 03F 109 158 G , 03F 109 507 F , 03F 115 225 , 03F 198 158 B
VW: 03F 109 158 G , 03F 109 507 F , 03F 115 225 , 03F 198 158 B

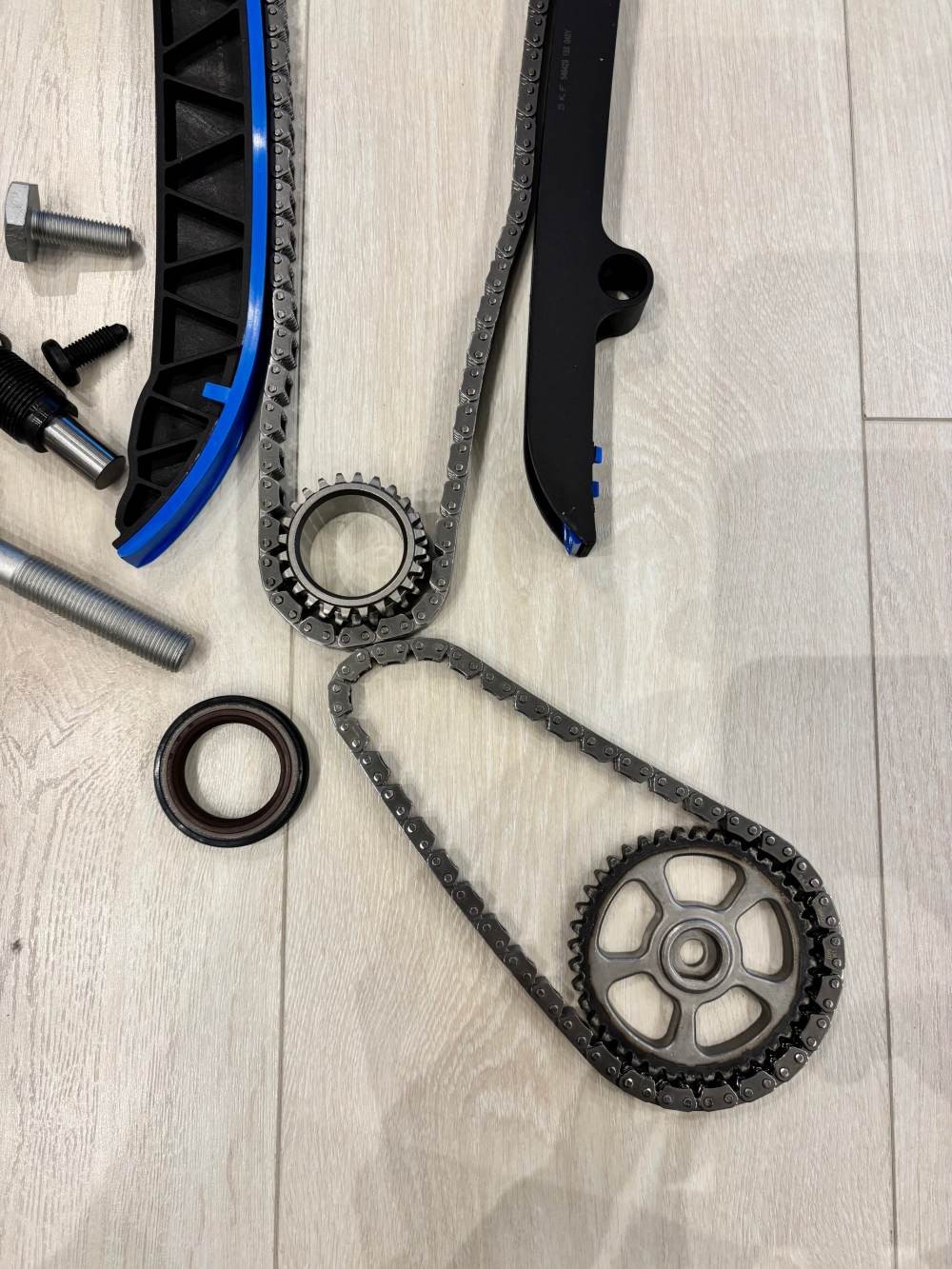

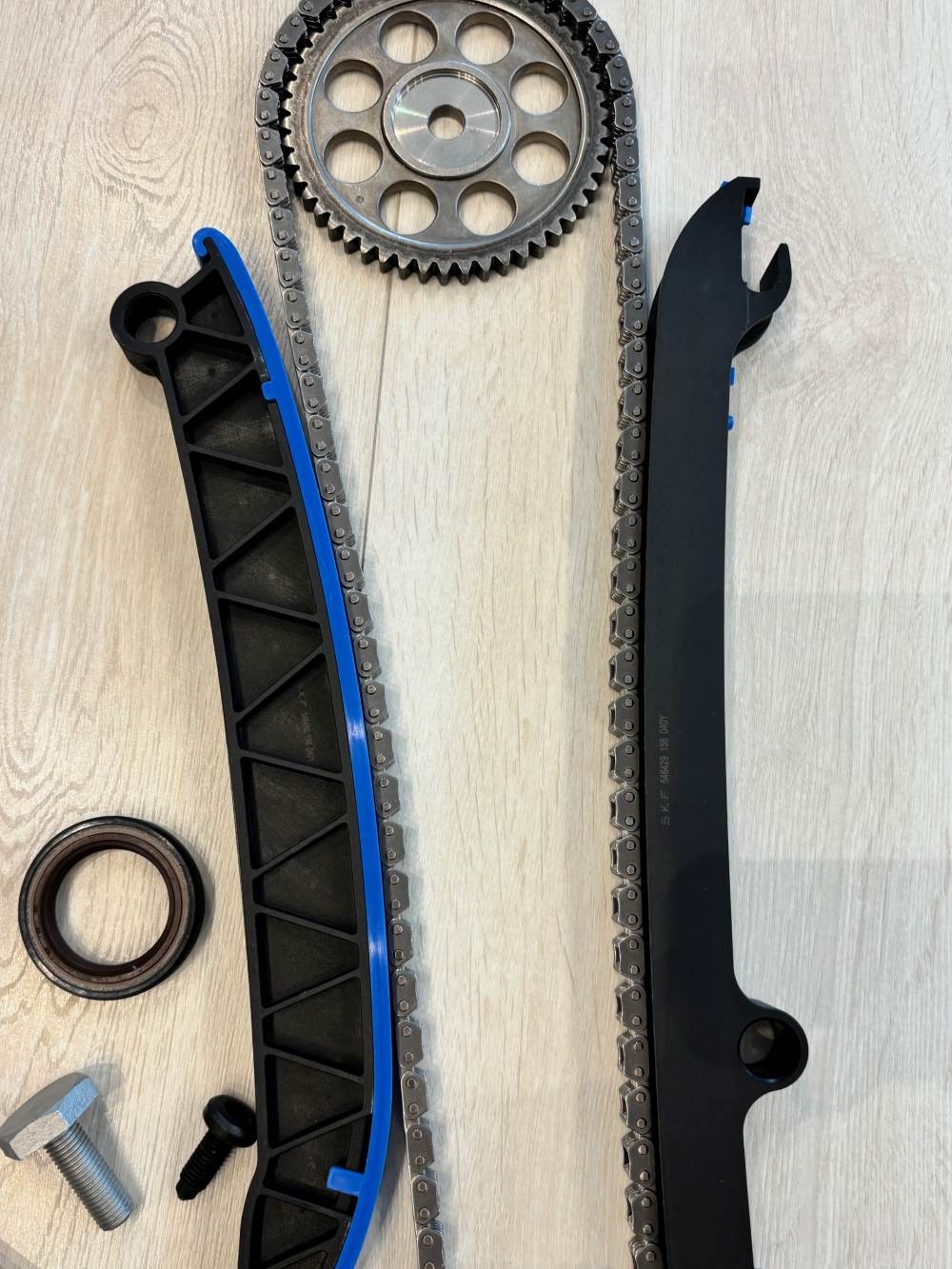

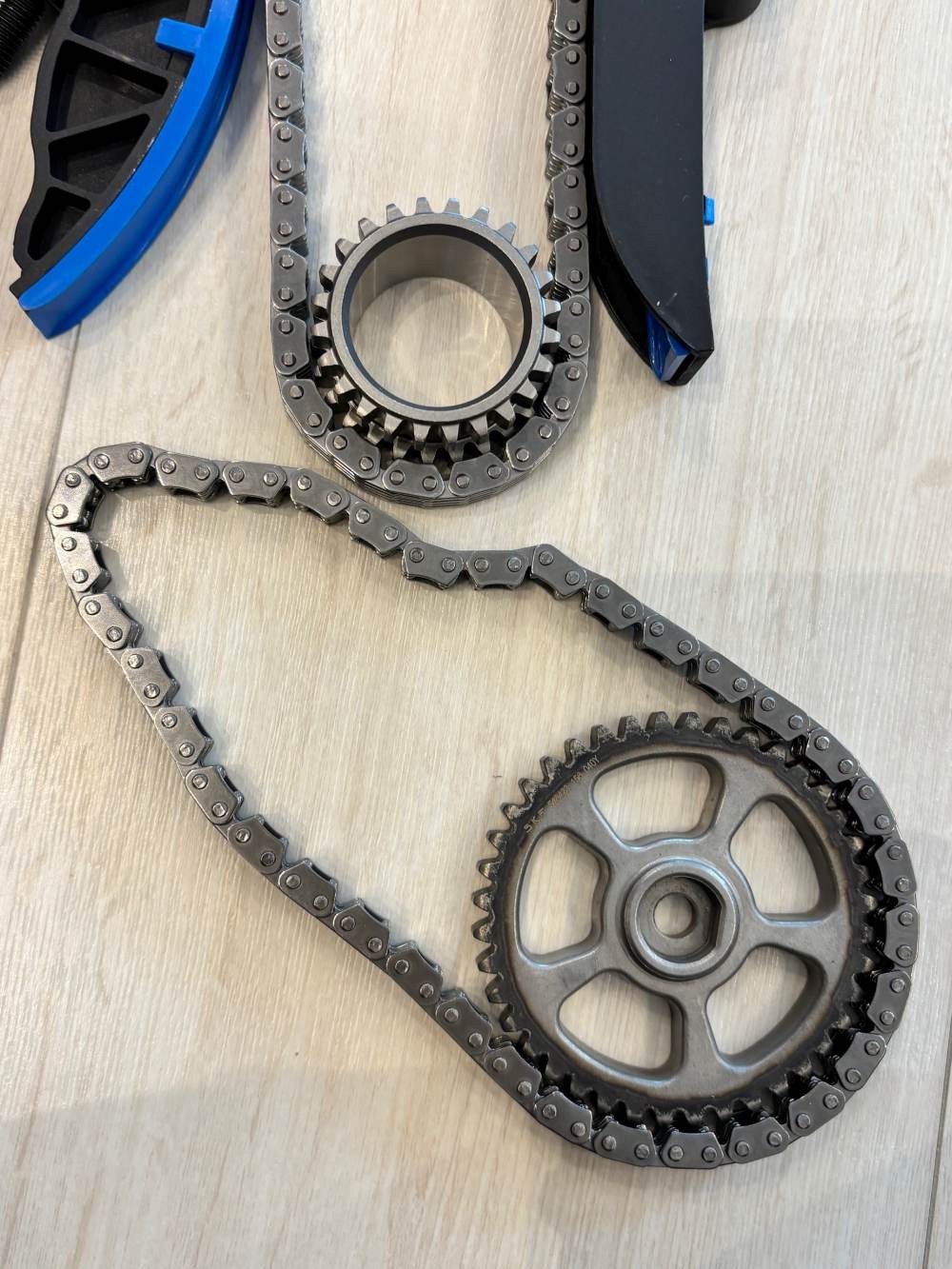

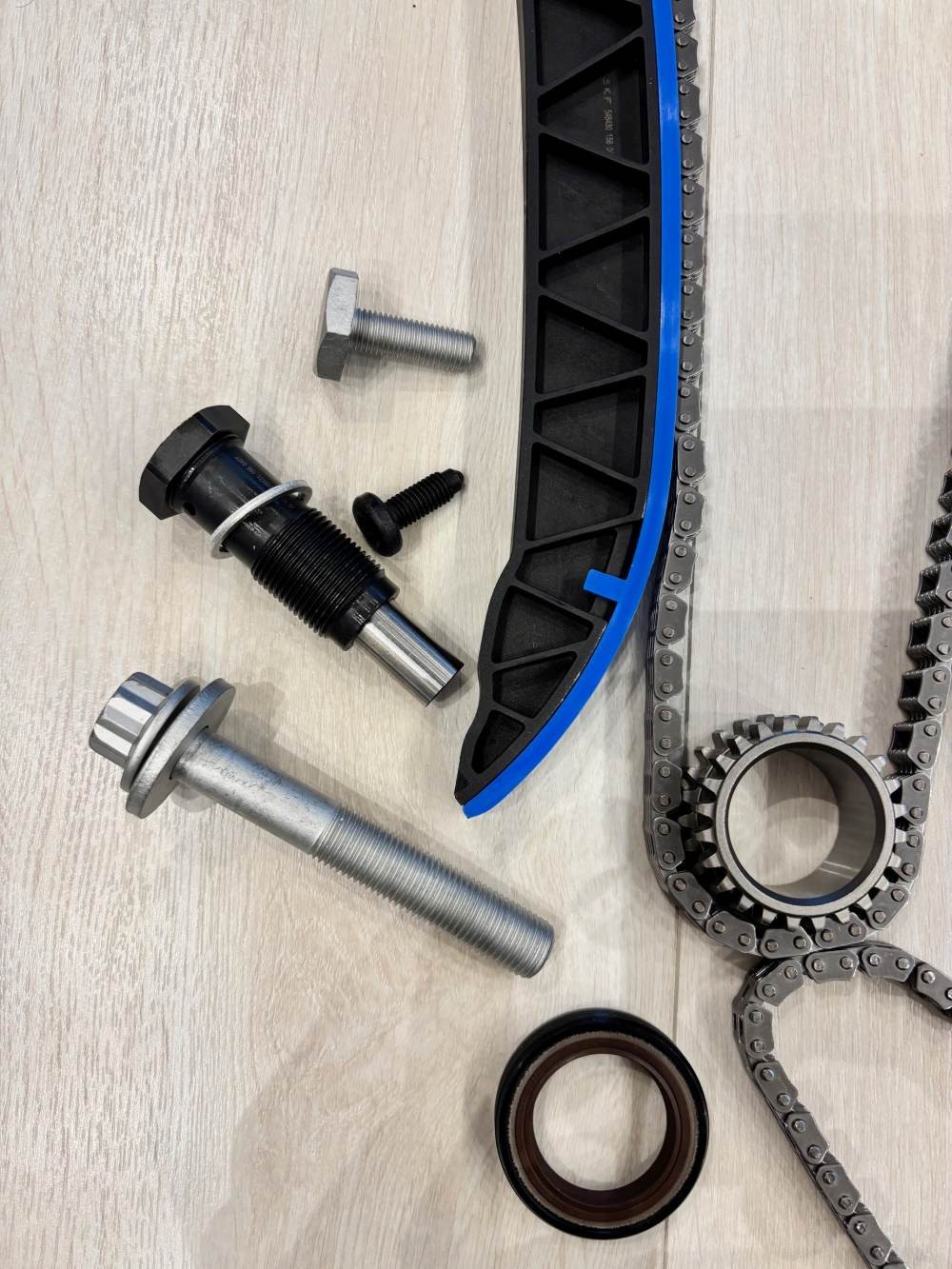

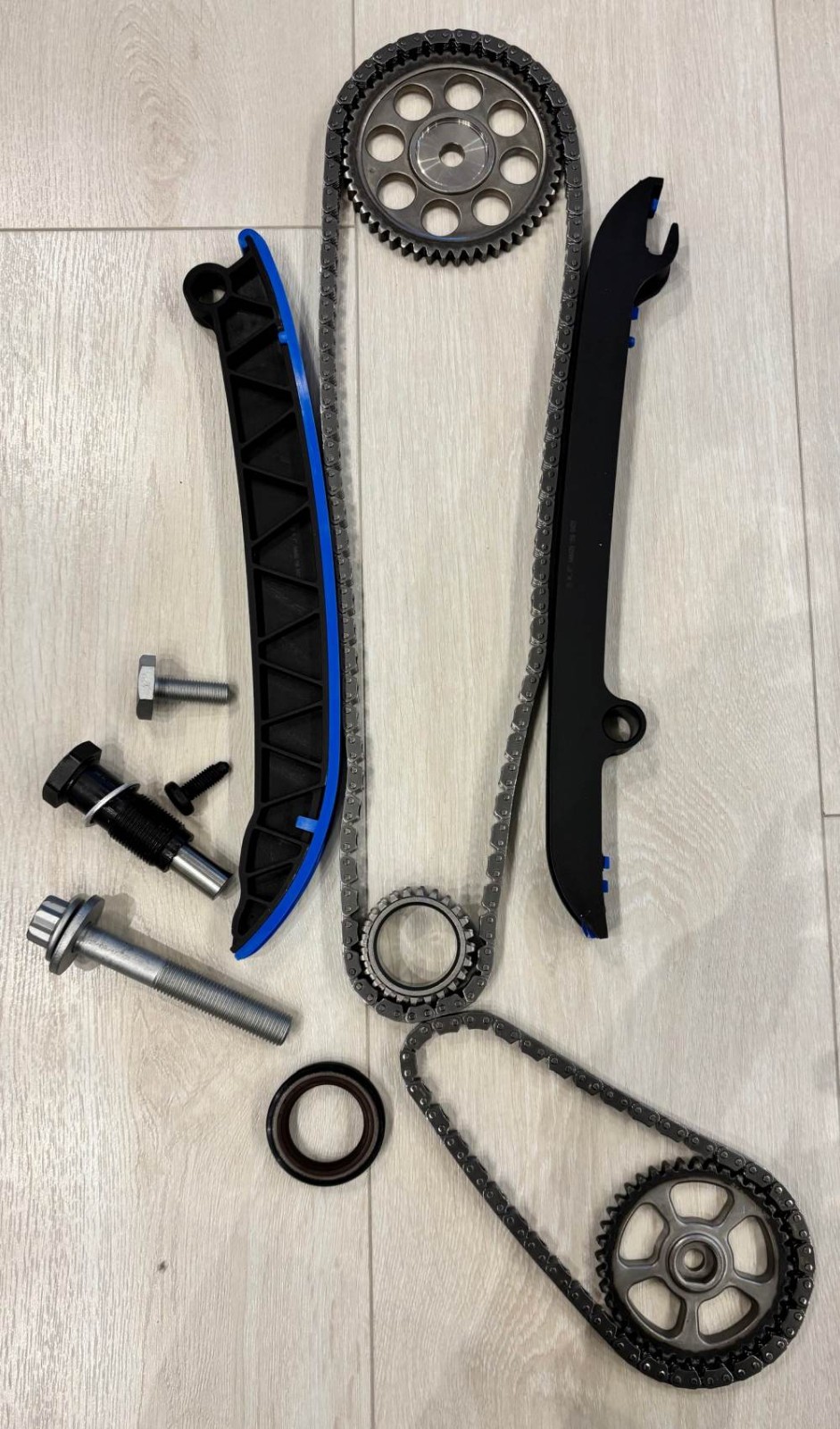

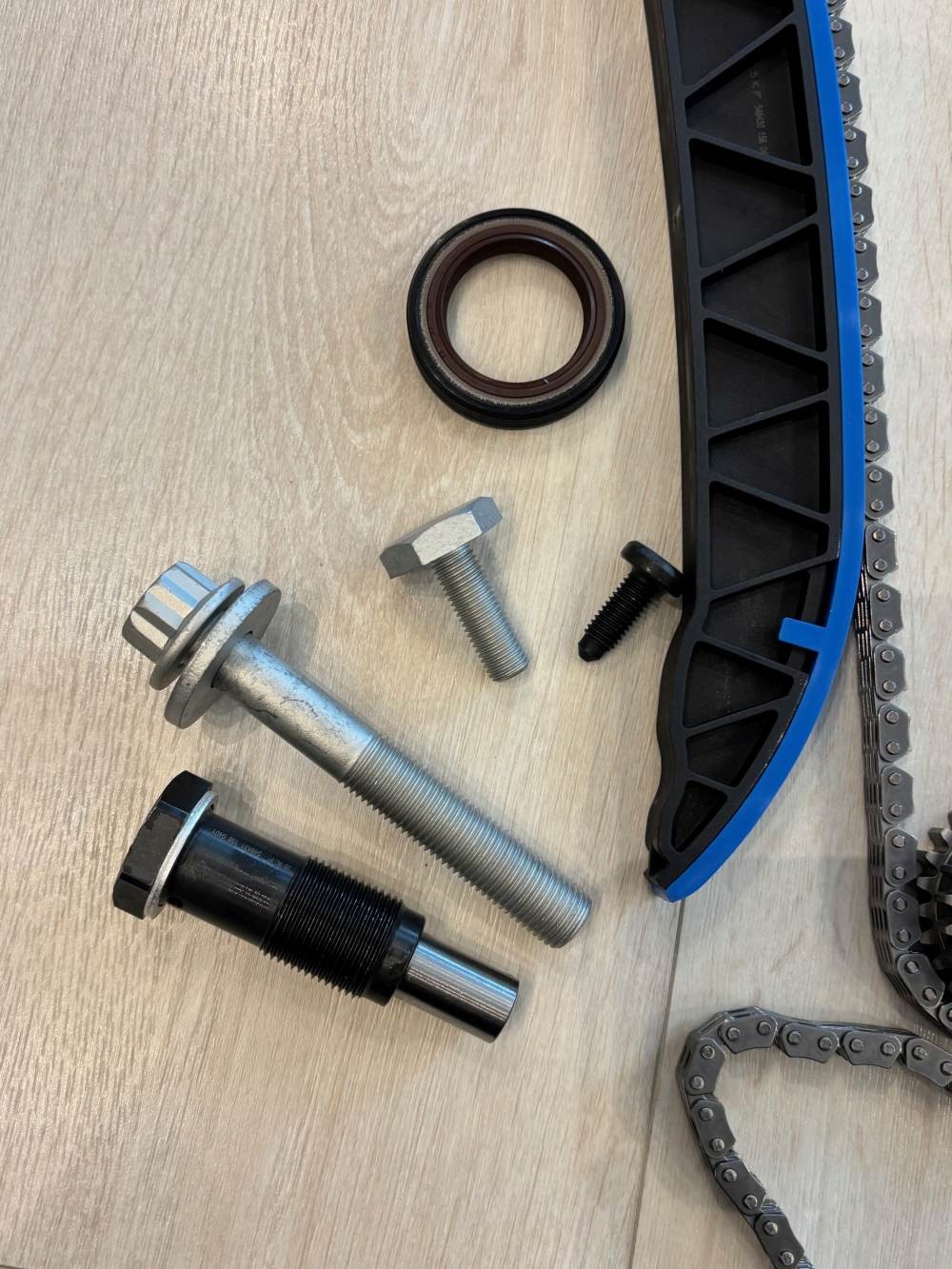

Lieferumfang:

• Steuerkette

• Kette kurz
• Führungsschiene
• Spannschiene
• kleine Spannschiene mit Feder
• Öldüse
• Kettenspanner
• Nockenwellenritzel
• Unteres Ritzel
• Ritzel Ölpumpe groß
• Ritzel Ölpumpe klein
• Wellendichtring Kurbelwelle

Vergleichsnummern:

• AUDI: 03F109158G
  AUDI: 03F109507F
  AUDI: 03F 198 158 B
  AUDI: 03F115225
  INA: 559 0155 10
  SEAT: 03F109507F
  SEAT: 03F115225
  SEAT: 03F109158G
  SEAT: 03F 198 158 B
  SKODA: 03F109507F
  SKODA: 03F 198 158 B
  SKODA: 03F115225
  SKODA: 03F109158G
  SWAG: SW33102211
  VW: 03F115225
  VW: 03F109158G
  VW: 03F 198 158 B
  VW: 03F109507F
